Sea Jay 2024 503 Territory

POA * Purchase Now
Send an Enquiry

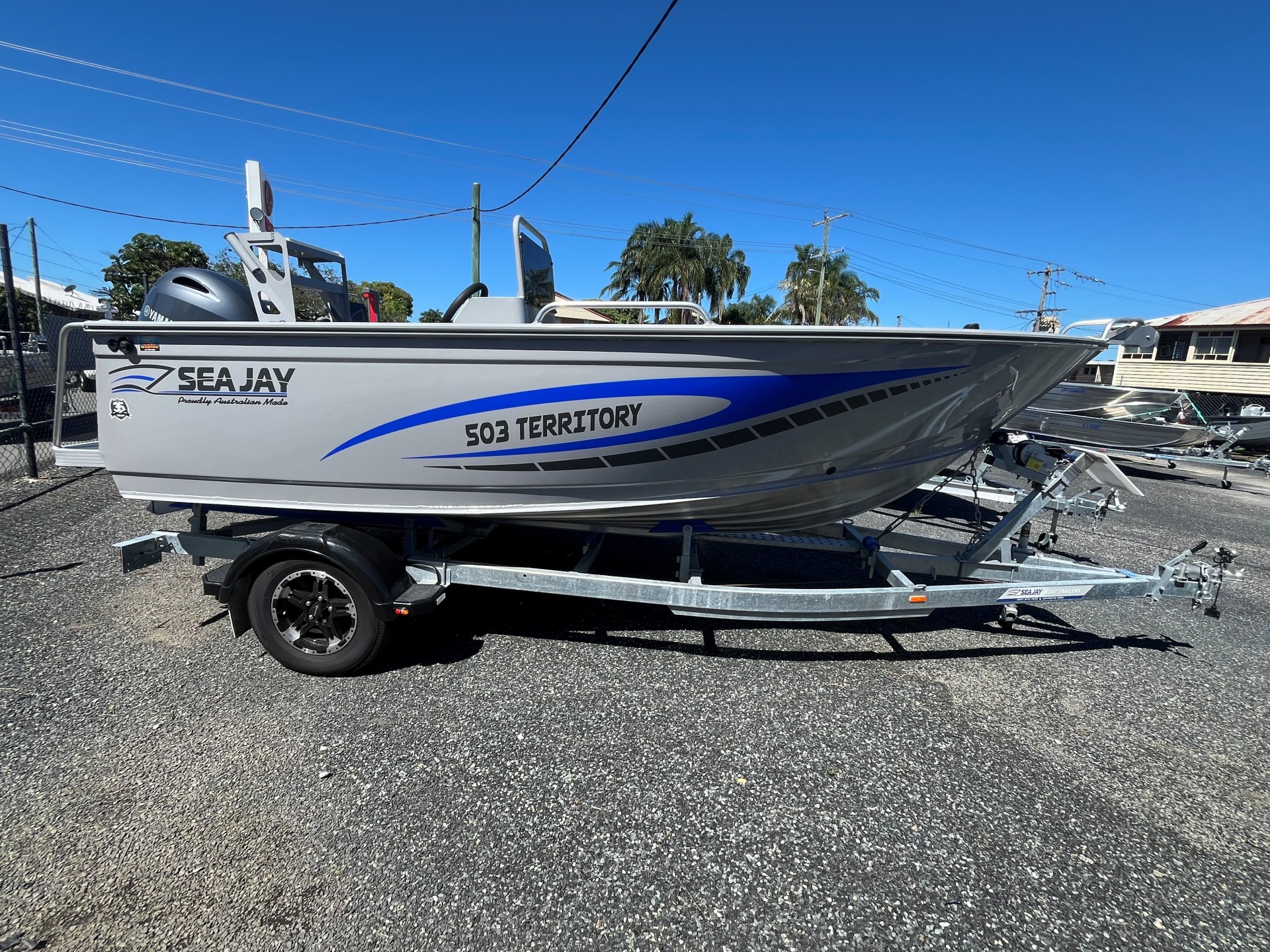

503 Territory - Side view

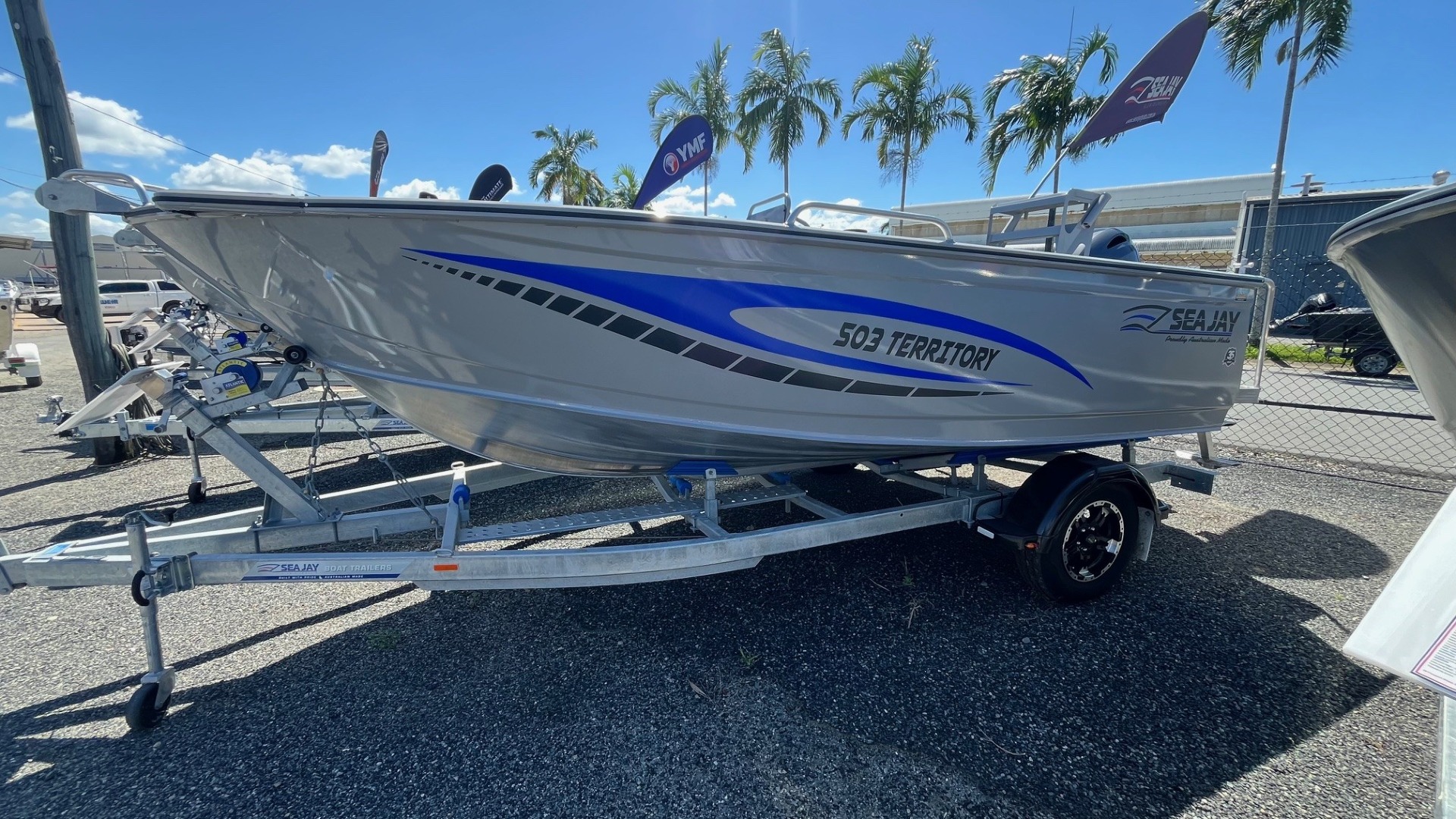

503 Territory - 1

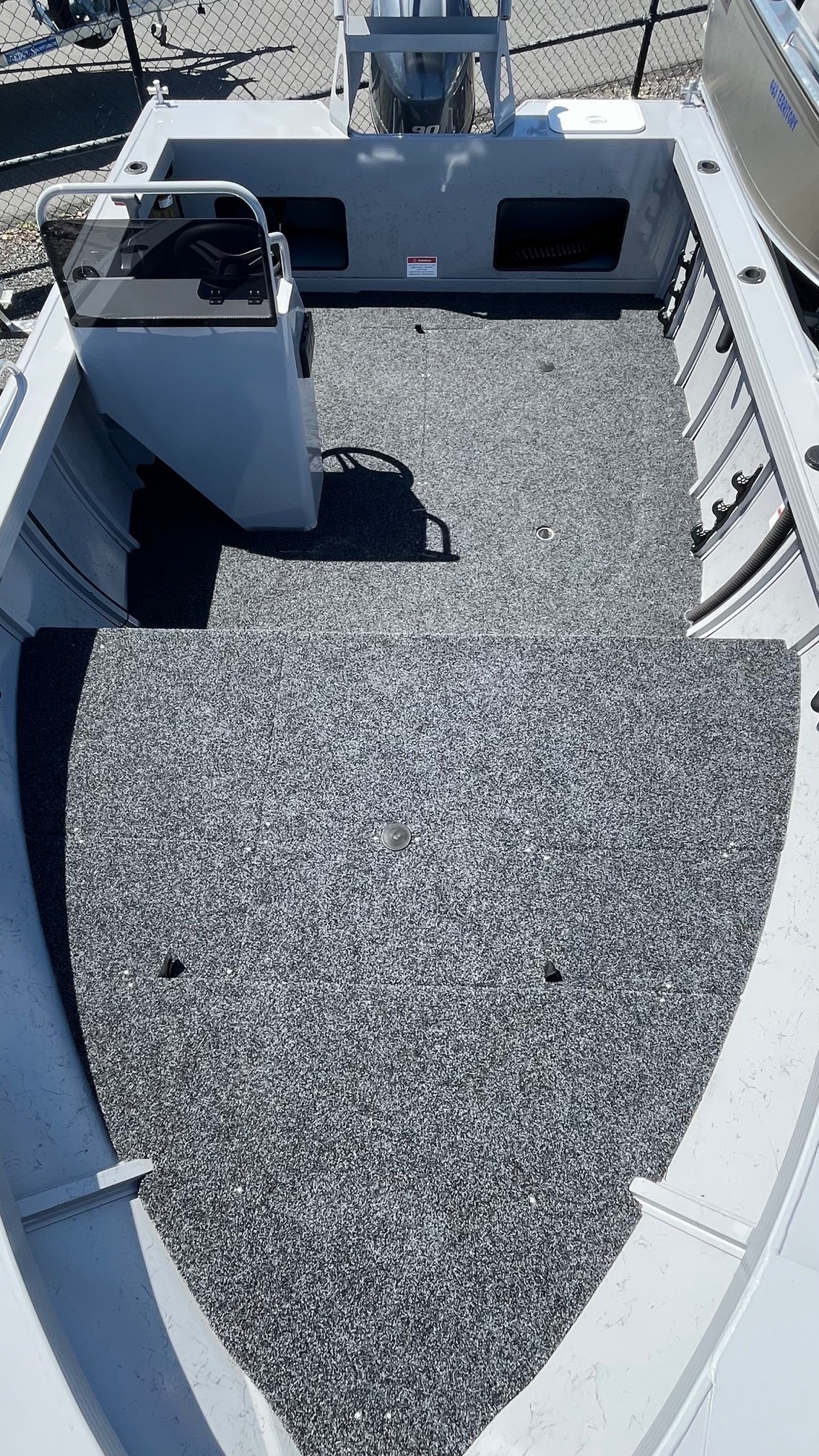

503 Territory - 2

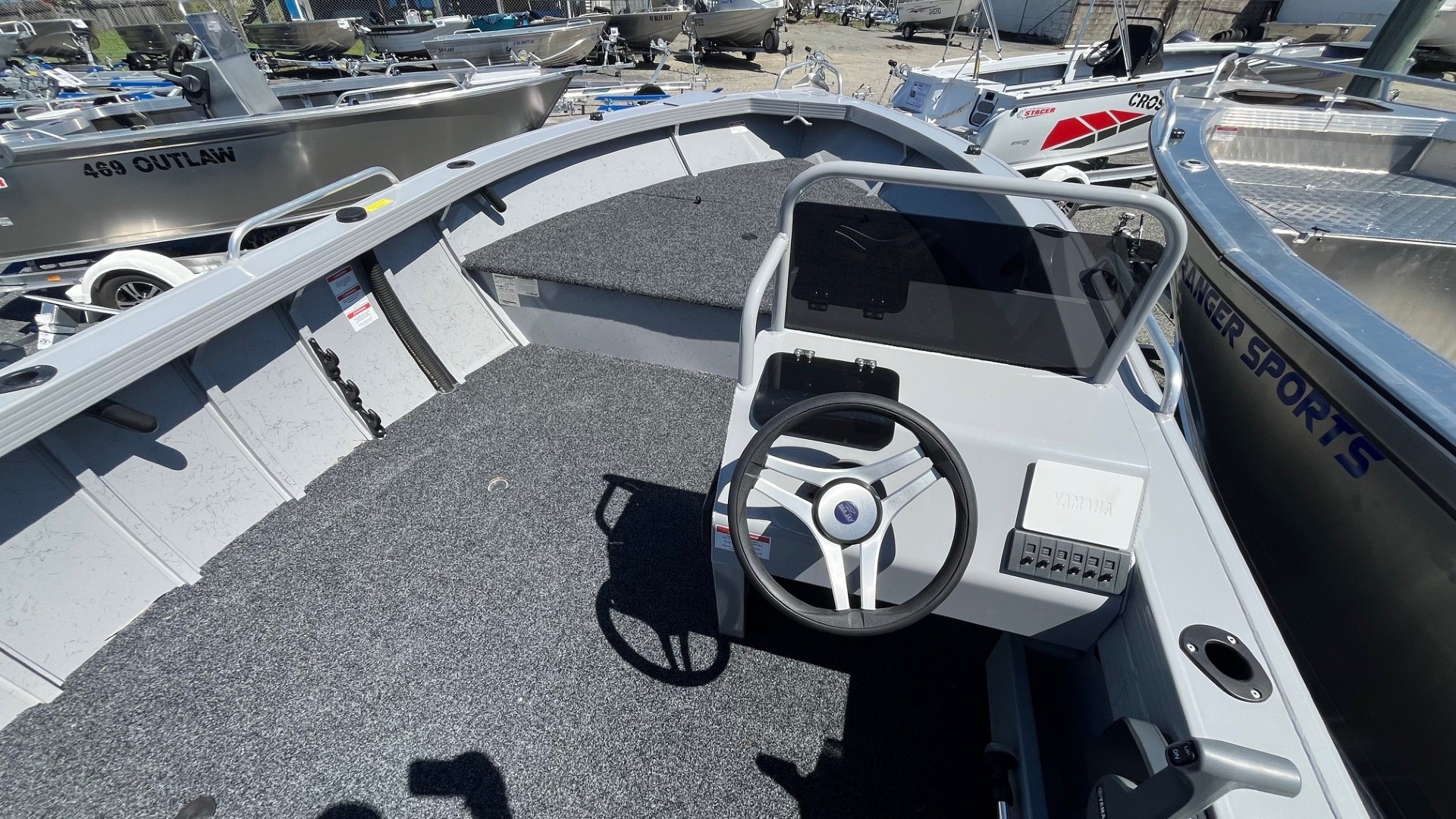

503 Territory - 3

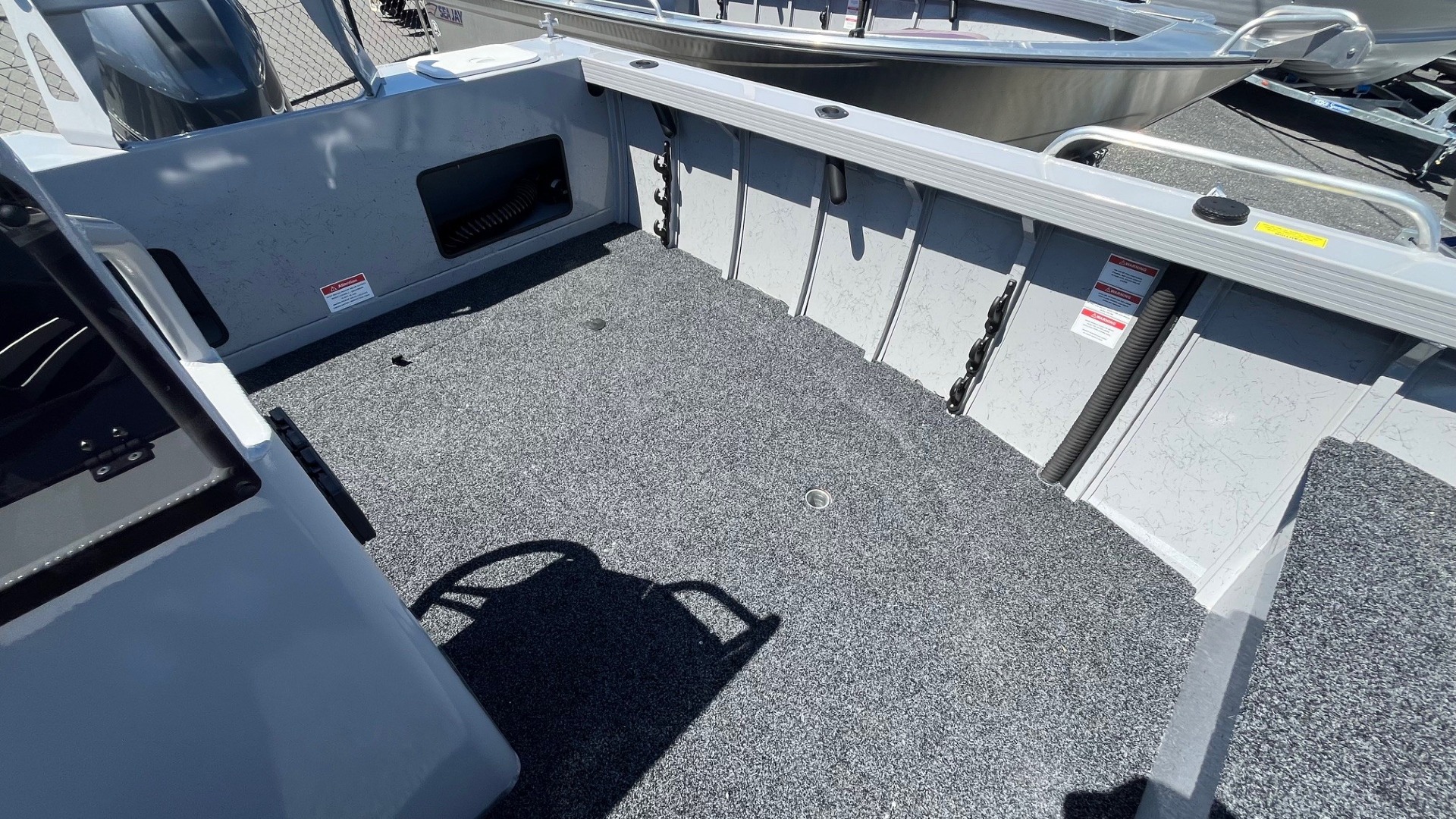

503 Territory - 4

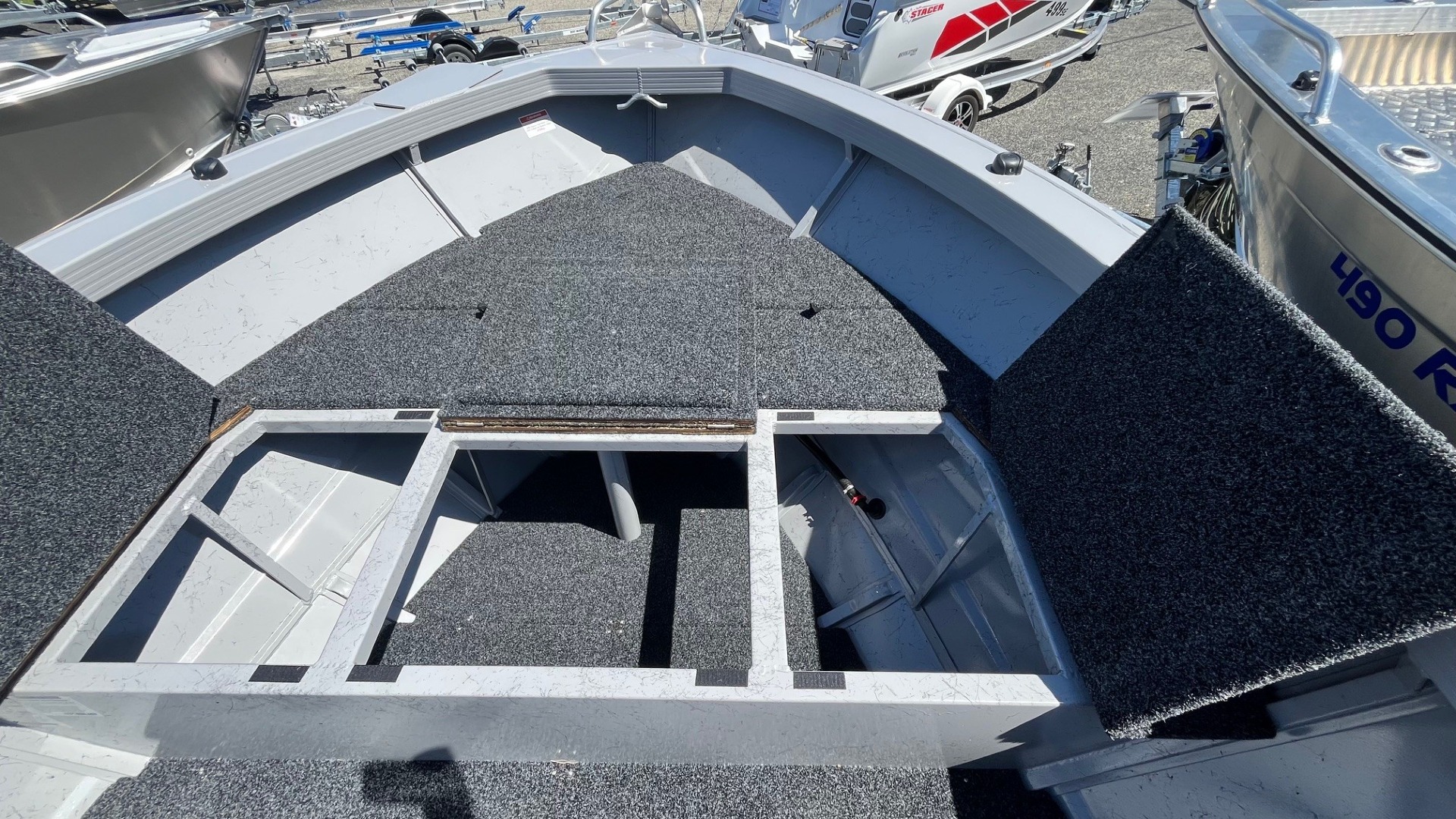

503 Territory - 5

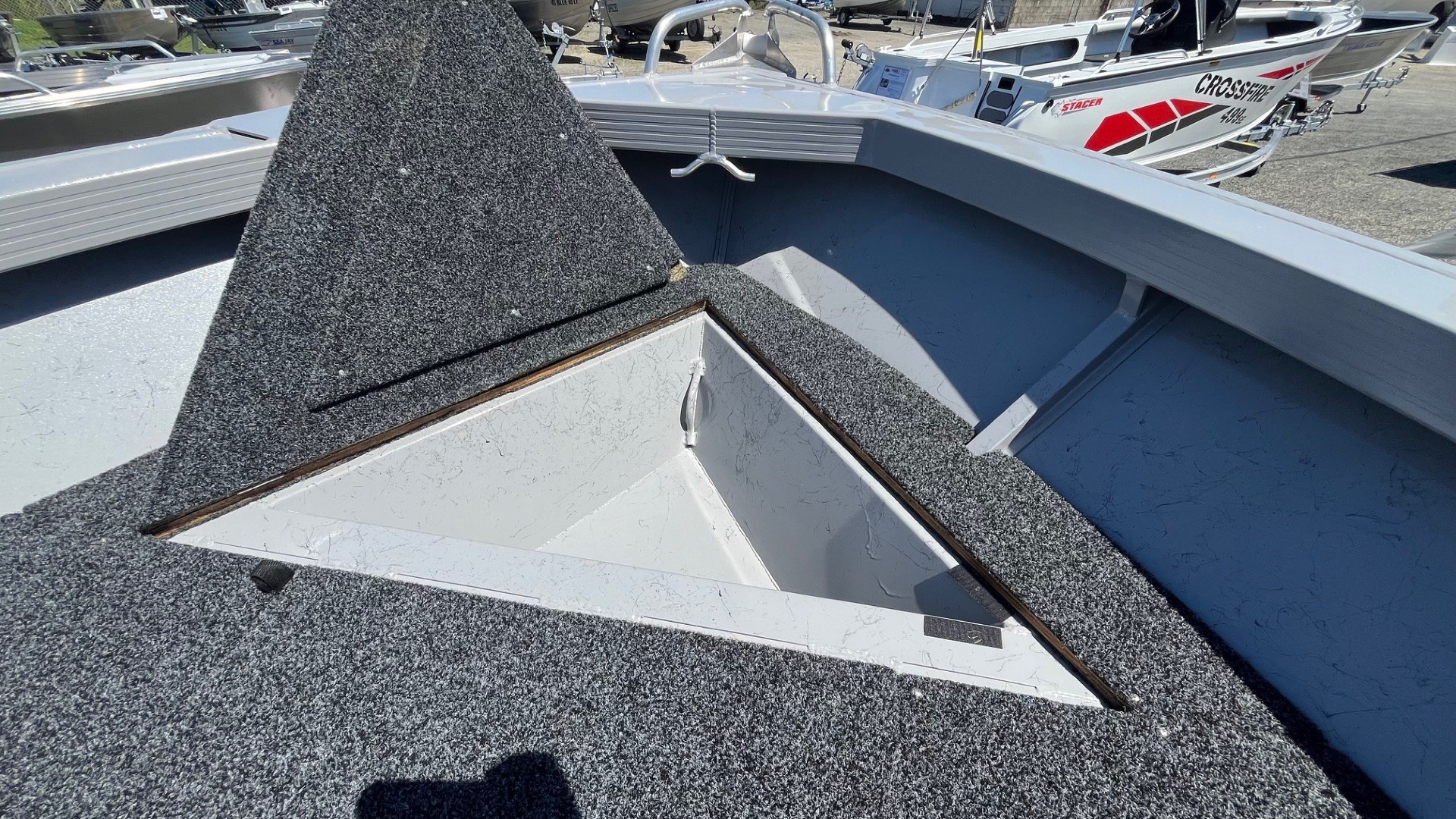

503 Territory - 6

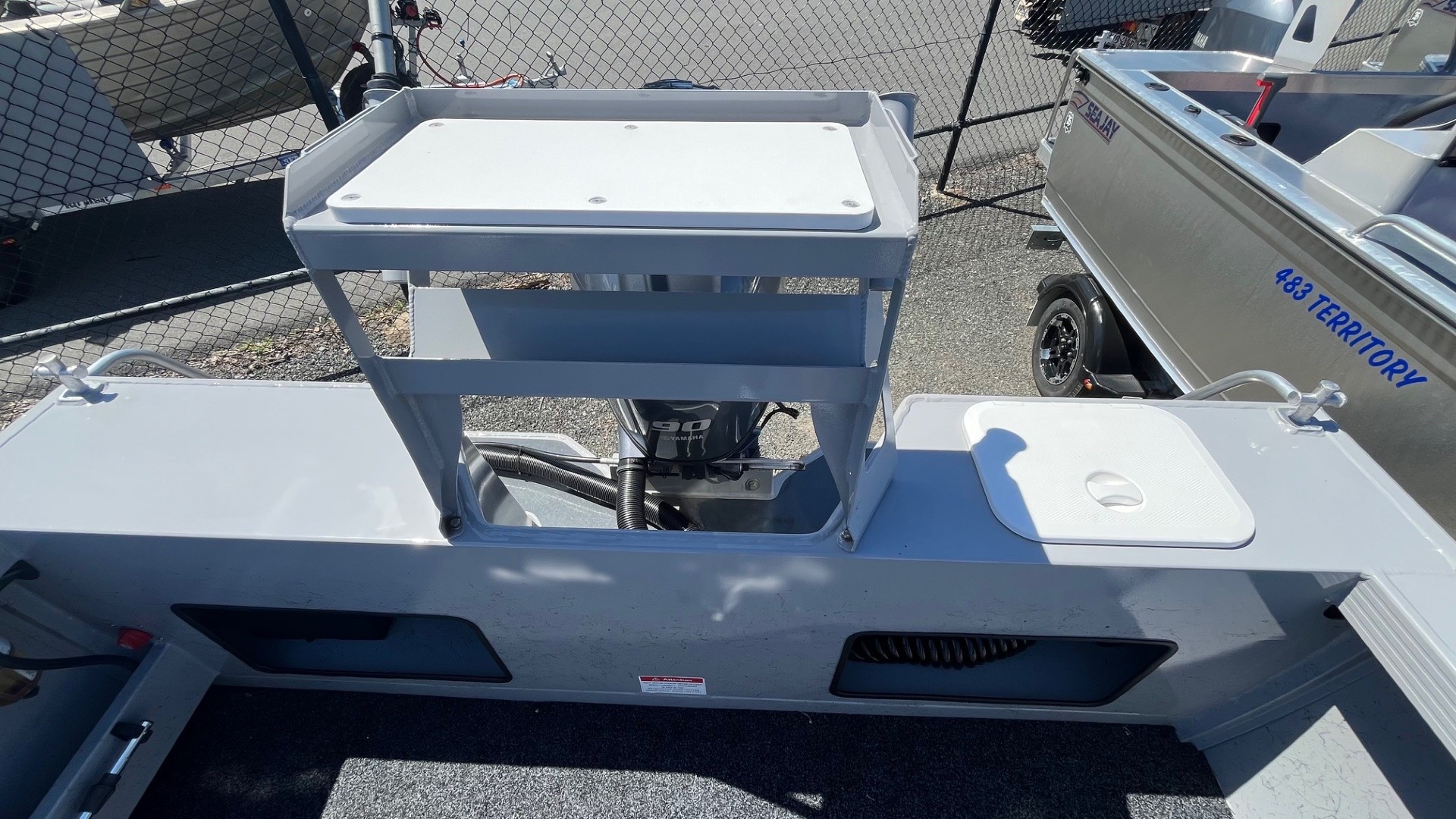

503 Territory - 7

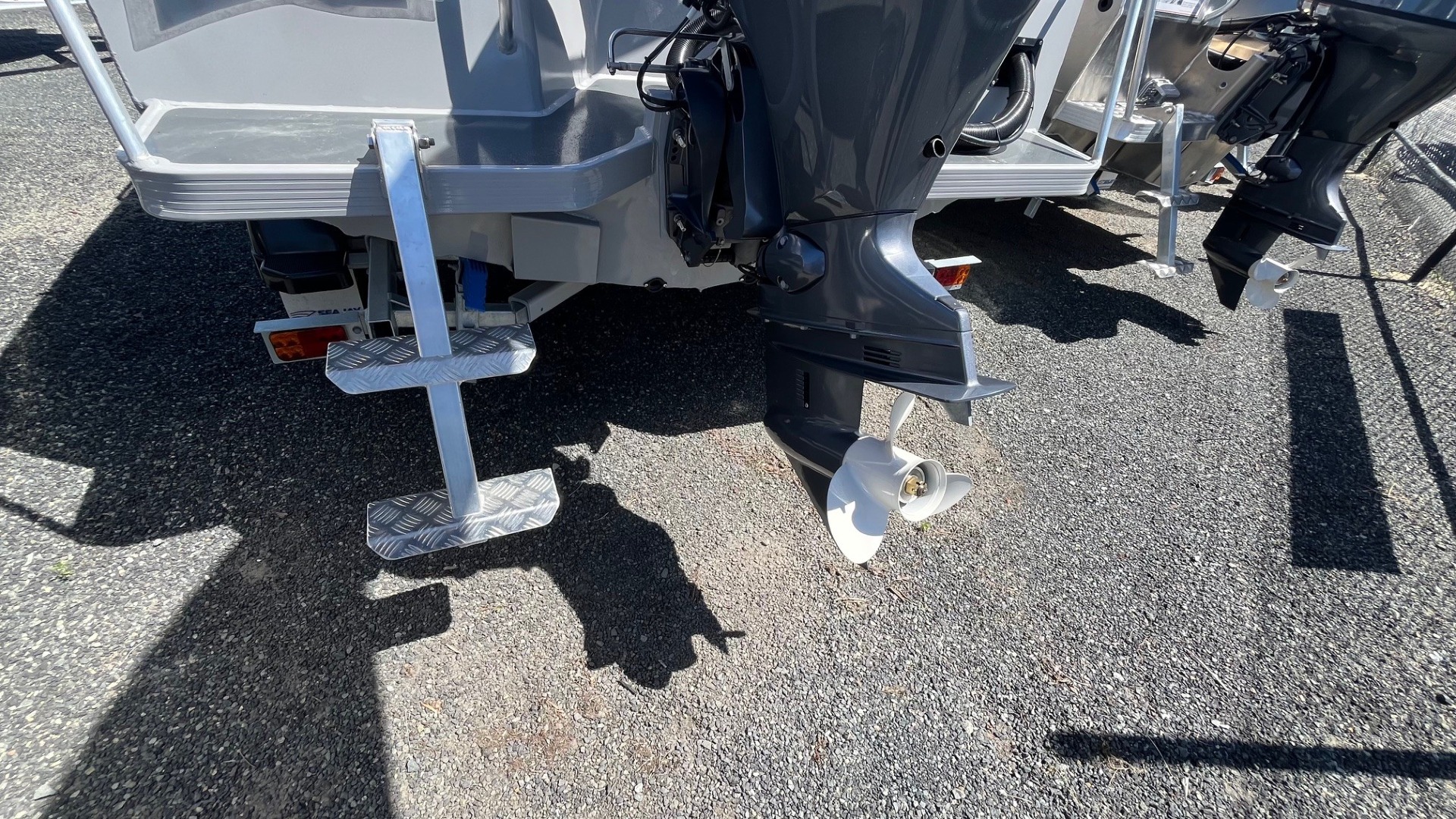

503 Territory - 8
Click to zoom / enlarge this image

Side Console

Steering

5.24 metres

Length

Aluminium

Hull Material

N/A

Hull Type

The TERRITORY takes sports fishing options to the next level. Based on the NexGen Adrenalin Hull this exciting new model has options that give a wide range of options for anglers. The larger front casting deck incorporates an anchor well under the deck giving more deck space for lure casting or tossing a cast net. The Ultimate Edge Transom with more ribs for extra strength gives this model the option to handle rougher water while the wide body with reverse chines gives better performance and allows better small water access. The Territory is available in a few sizes to suit your needs. While it is a side console as standard, they are also available as a center console if that suits your needs.
Details Specifications Features & Options
Boat Details
  • Make: Sea Jay
  • Name: 503 Territory
  • Model Number: 503 Territory
  • Price:
    $0.00
  • Year: 2024
  • Length: 5.24 metres
  • Width: 2.32 metres
  • Dry Weight: 493 kg
  • Hull Material: Aluminium
  • Hull Type: N/A
  • Passenger Capacity: 5
  • Boat Usage: Fishing
  • Steering: Side Console
  • Stock Number: SJT503
Engine Details
  • Brand: Yamaha
  • Horsepower: 90
  • Fuel Capacity: 90
  • Drive Type:
  • Steering: Tiller

503 Territory

- Painted inside & out Pipeline Grey

Yamaha F90LB

- 703 control box

- Yamaha CL5 gauge

Sea Jay RS510-MO (Gal) Trailer

12 Months registration - Boat & Trailer

2 Nautical mile safety gear

5.03 Territory

NexGen Adrenalin Hull

Bottoms (mm) 3.0

Plate sides (mm) 3.0

Beam (m) 2.32

Depth (m) 1.29

Depth inclu. screen (m)  1.6

Floor ribs 12

Number of persons 5

Weight approx (kg) 493

Maximum hp 90

Max motor weight (kg) 165

 Overall length (m) 5.24

FUEL TANK - Under floor / Gunwale filler / gauge  90ltr

Anchor well

NexGen Adrenalin Hull

Bait tank plumbed- alloy

Stainless steel shut off valve on bait tank pick up

Battery & storage area in stern

Boarding ladder – heavy duty

Low floor under front cast

Bollard x 3

Bow sprit & roller

Bungs 38mm x 2

Console – Side or Centre (includes screen/shelf)

Drink holder x 2

Electric motor plate – extended off gunwhale

Front casting platform with 5 x hatches

Flotation – under floor

Floor – carpet / plywood

Gunwhale rubber insert

Reverse Chines

Rod holders (plastic) x 6

Side pockets

Spray chines

Steering – push pull

Towing eye (double)

Transducer bracket

Wide side decks – fully welded

Accessory pre-rig loom with battery isolator and bilge pump

6 gang switch panel/ bilge pump/navigation & anchor light

Fuel filter bracket starboard side

Transom tie downs
