490 Crusader

Back to listings


Sea Jay 490 Crusader


$0.00
* Sail Away
Click to zoom / enlarge this image

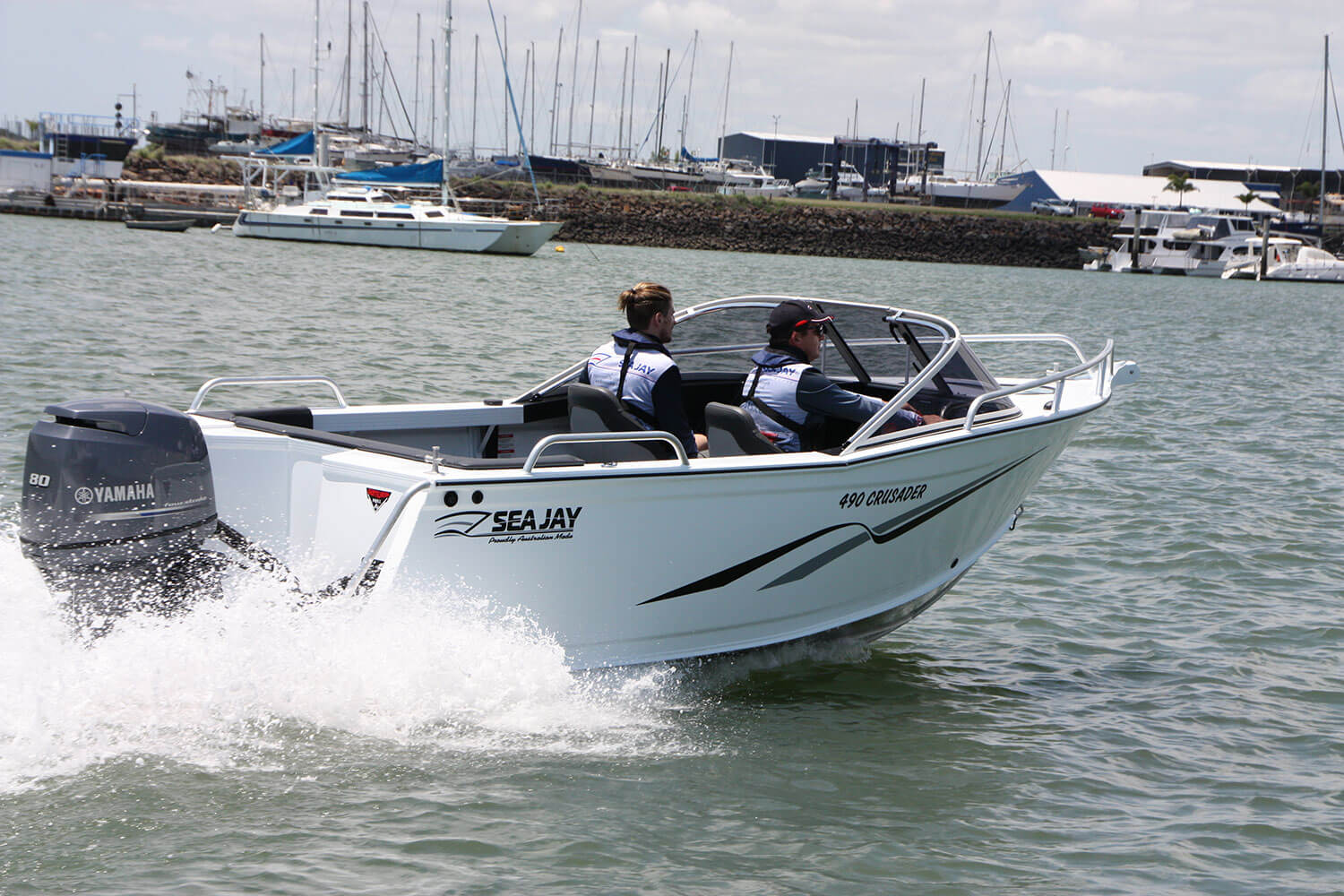

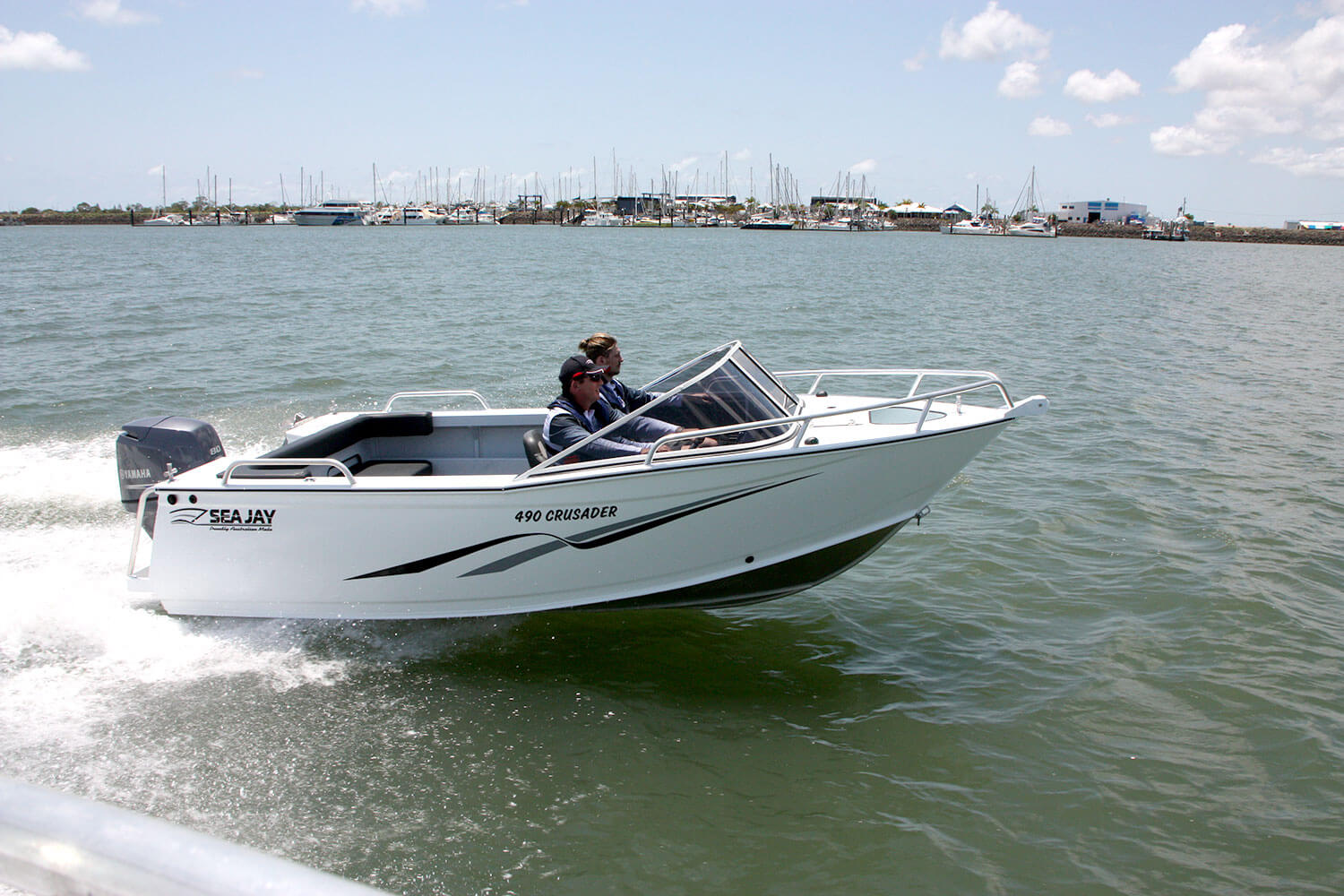

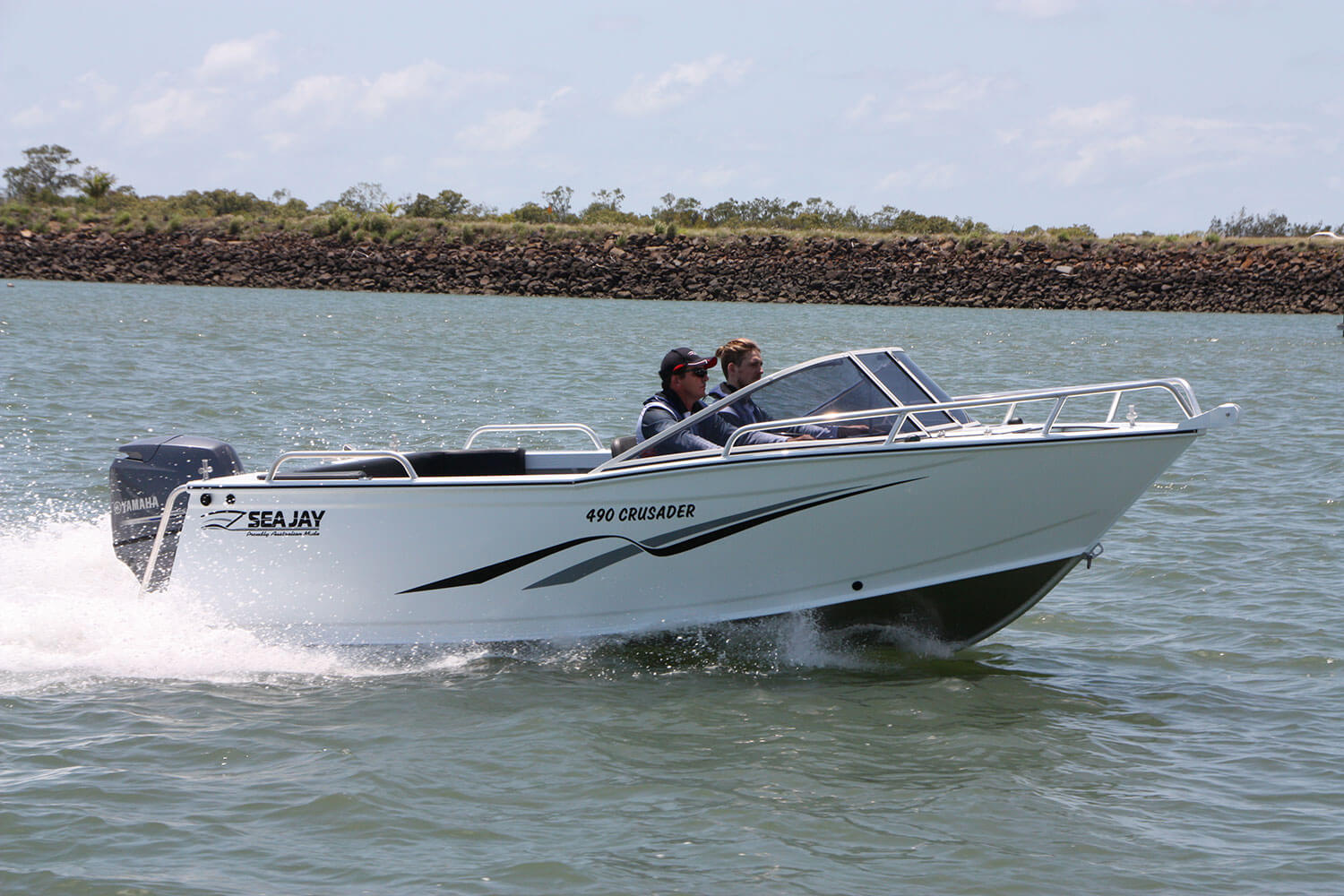

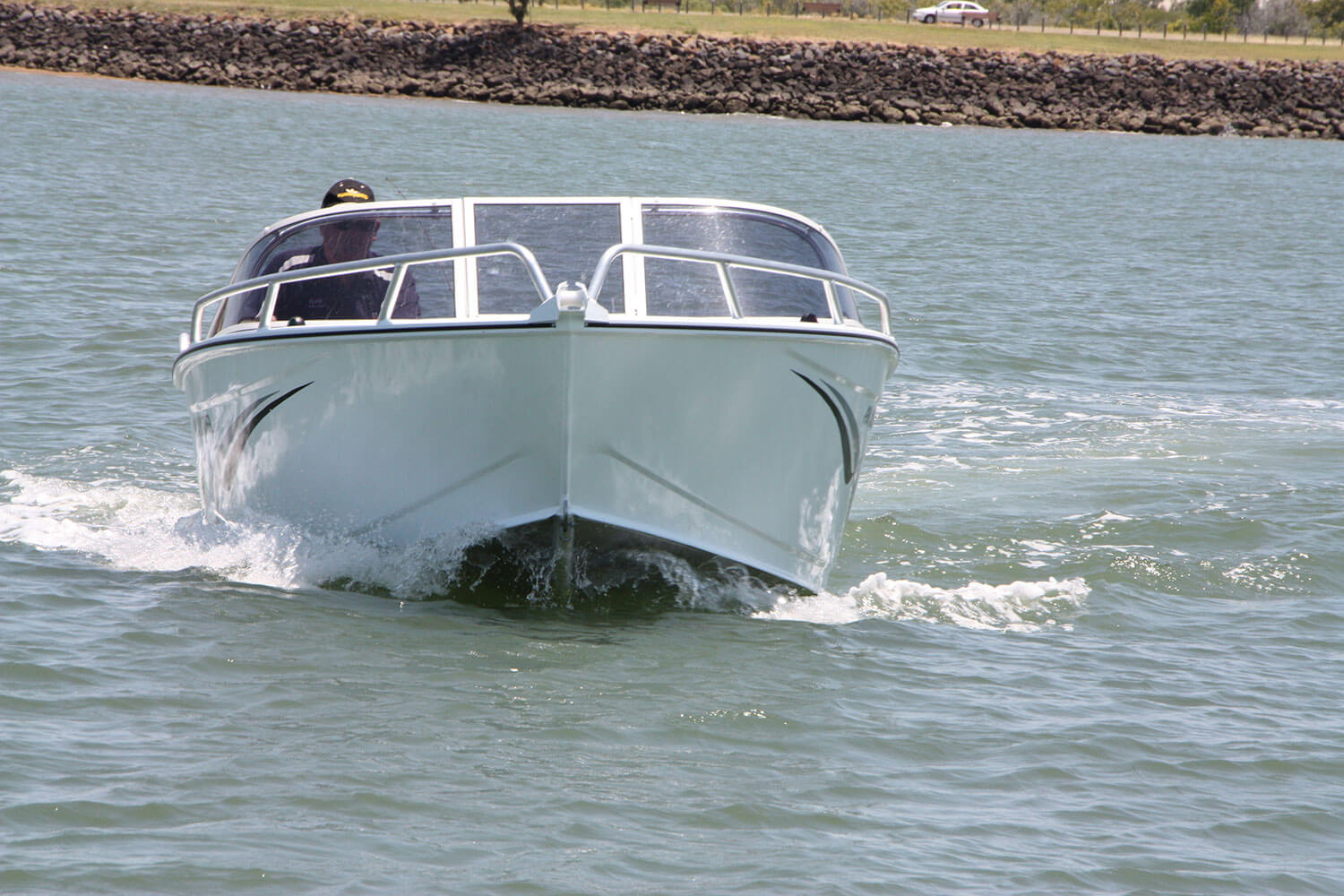

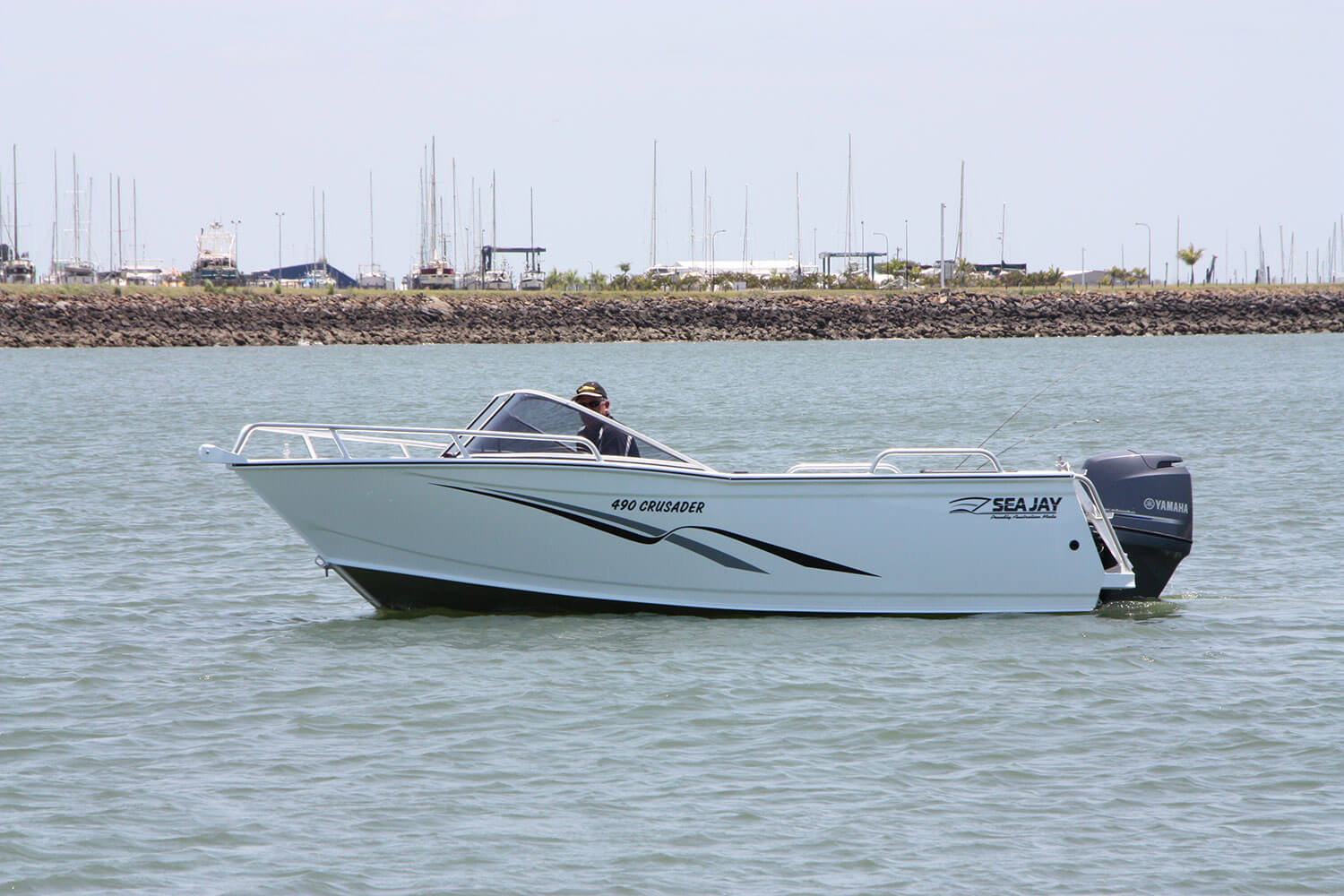

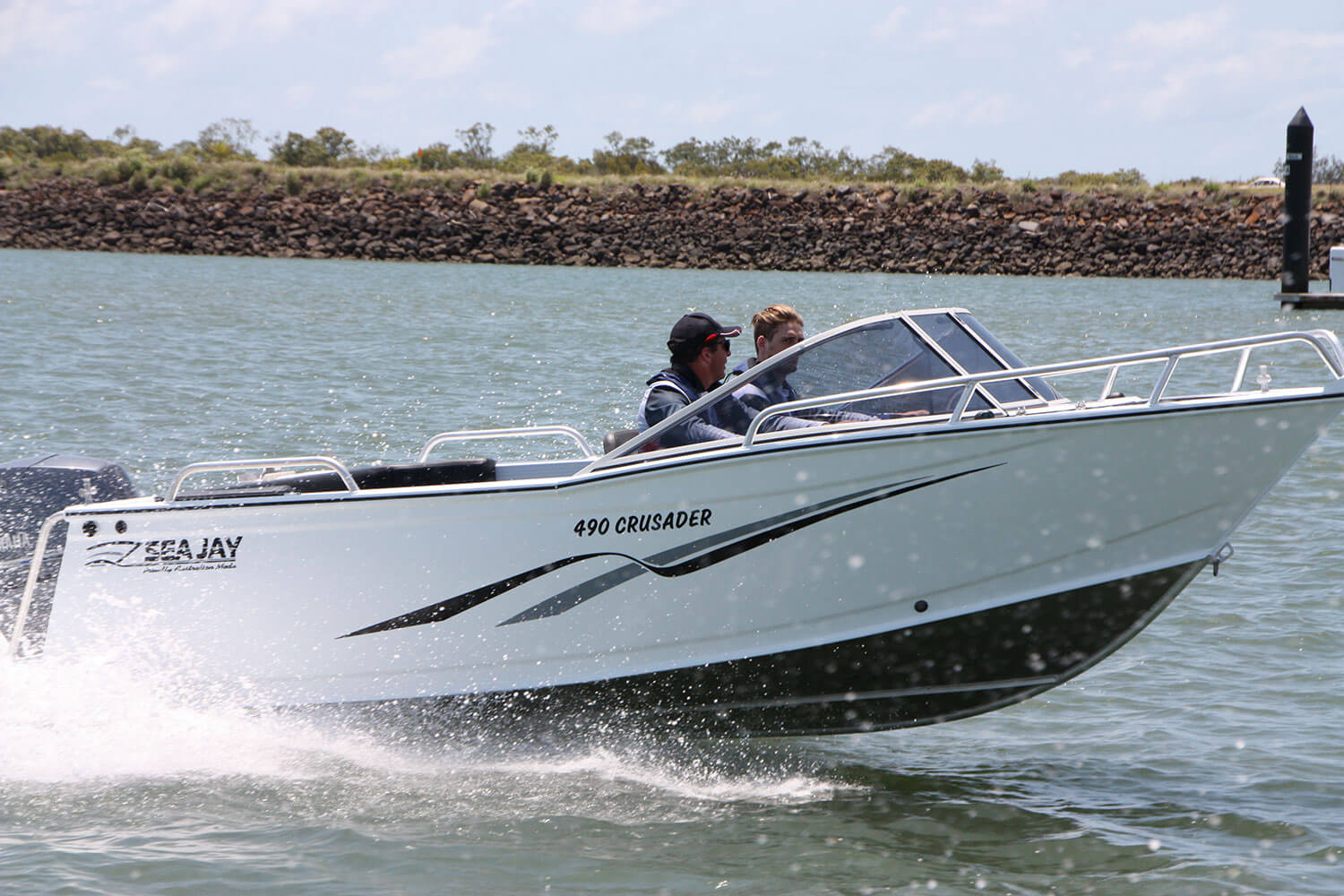

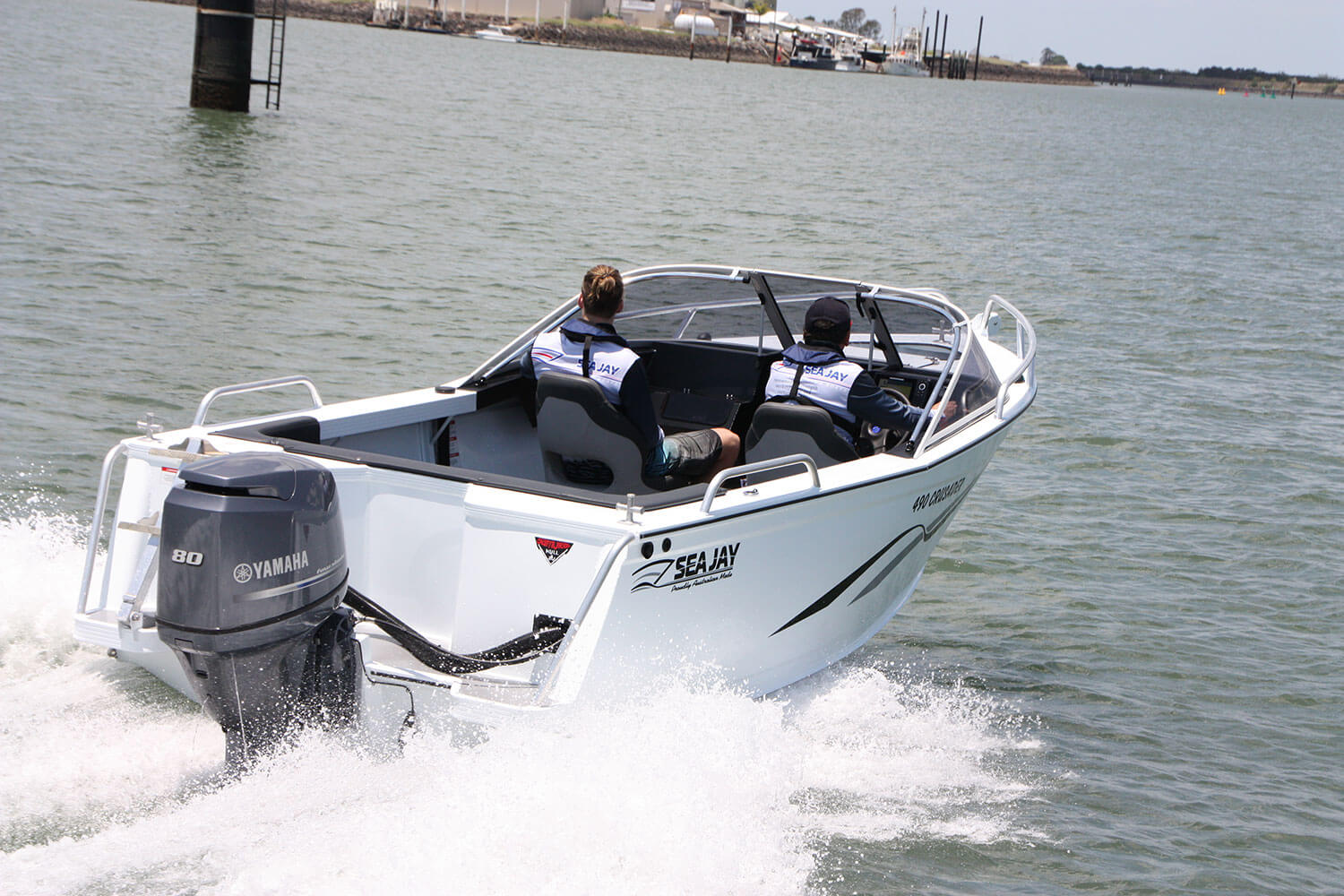

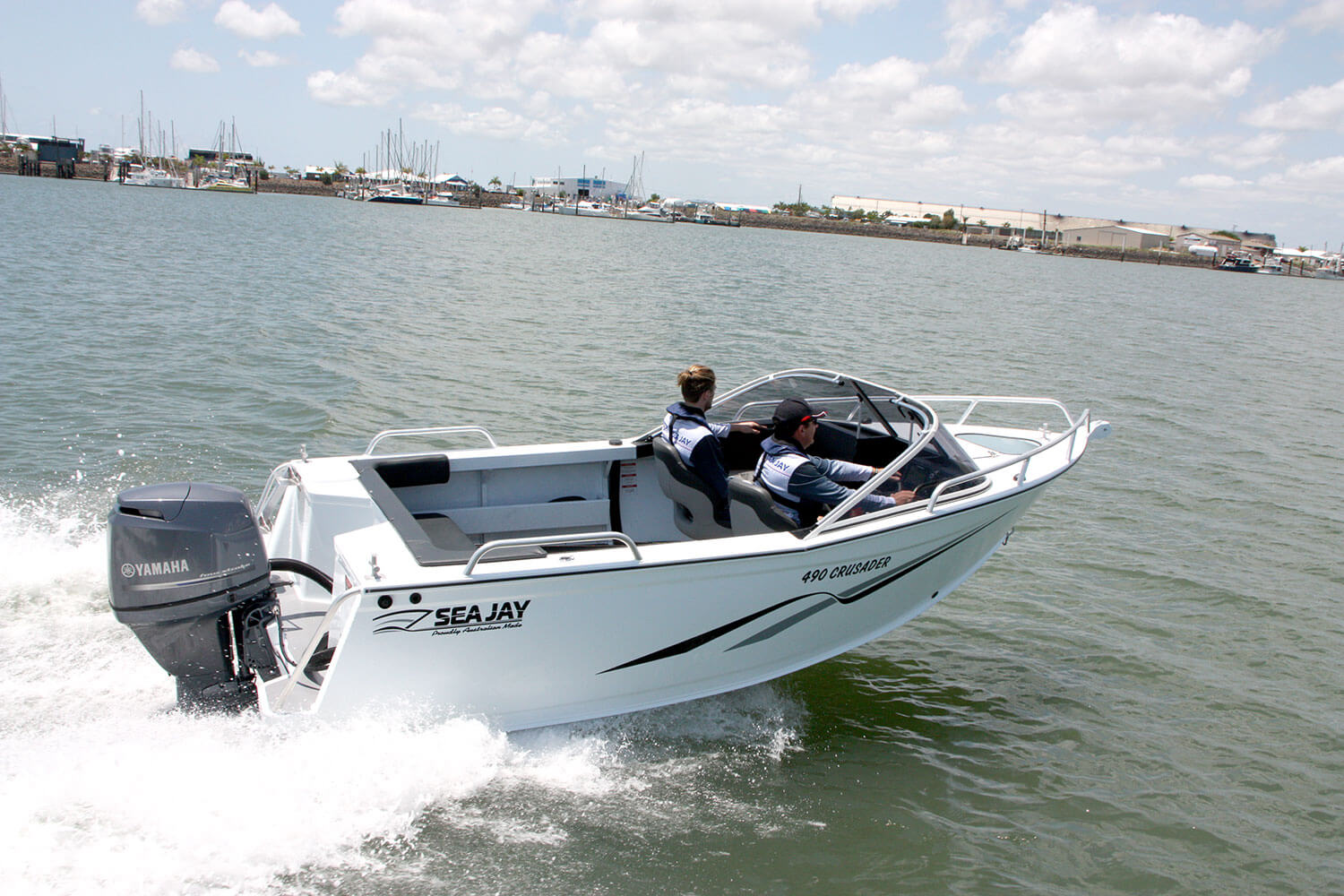

The Crusader runabout features latest swept bow configuration in a runabout giving a greater feeling of safety up the front of the boat and the soft ride of the Samurai Hull is a pleasure to feel. A walk through dash and screen allows for easy anchoring and fully upholstered swivel seats in the front and fully upholstered removable rear lounge with padded back rest gives the whole family a comfortable ride. The Crusader is a perfect mix of a roomy family boat with a good fishing platform.

Boat Details
  • Make: Sea Jay
  • Name: 490 Crusader
  • Model Number: 490 Crusader
  • Year: 2026
  • Length: 5.22 metres
  • Width: 2.3 metres
  • Dry Weight: 520 kg
  • Hull Material: Aluminium
  • Hull Type: Mono
  • Passenger Capacity: 5
  • Boat Usage: Fishing
  • Steering: Side Console
  • Warranty: Contact Dealer
Engine Details
  • Brand: Yamaha
  • Horsepower: 90
  • Fuel Capacity:
  • Drive Type:
  • Steering:

SPECIFICATIONS  4.90  5.20
Bottoms high tensile 5083 plate (mm) 4.0 4.0
Plate sides (mm) 3.0 3.0
Beam (m) 2.3 2.4
Depth (m) 1.25 1.29
Depth including screen (m) 1.58 tbc
Floor ribs 12 13
Length overall 5.22 5.52
Number of persons 5 5
Weight approx (kg) 520 tbc
Maximum hp 90 115
Maximum motor weight (kg) 175 195

Note – Specifications may vary slightly. Features / options are subject to change without notification.
FEATURES  4.90  5.20
Anchor well

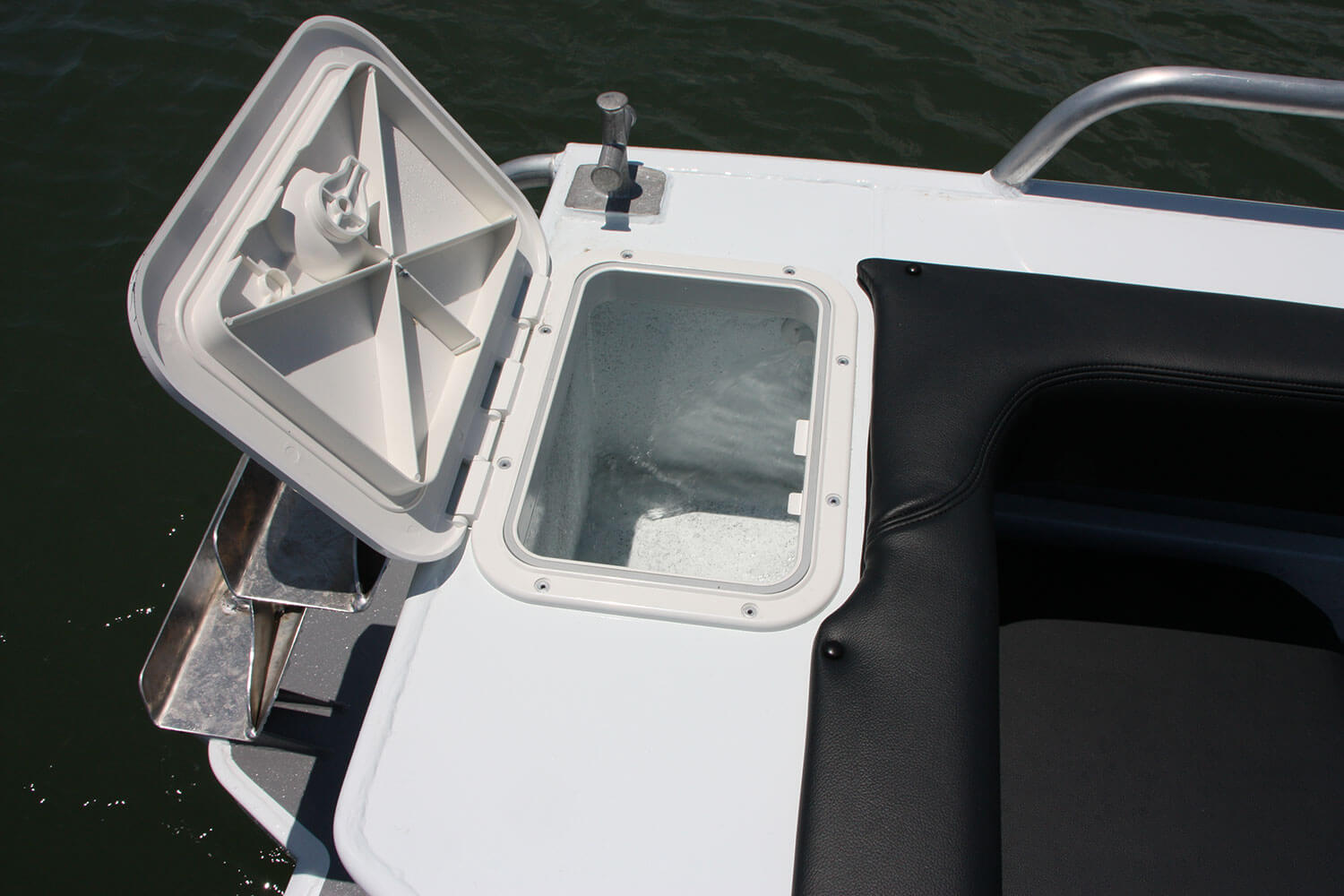

Bait tank plumbed – alloy
Battery & oil rack in stern
Boarding ladder – heavy duty
Windscreen with grab rails
Walk through windscreen

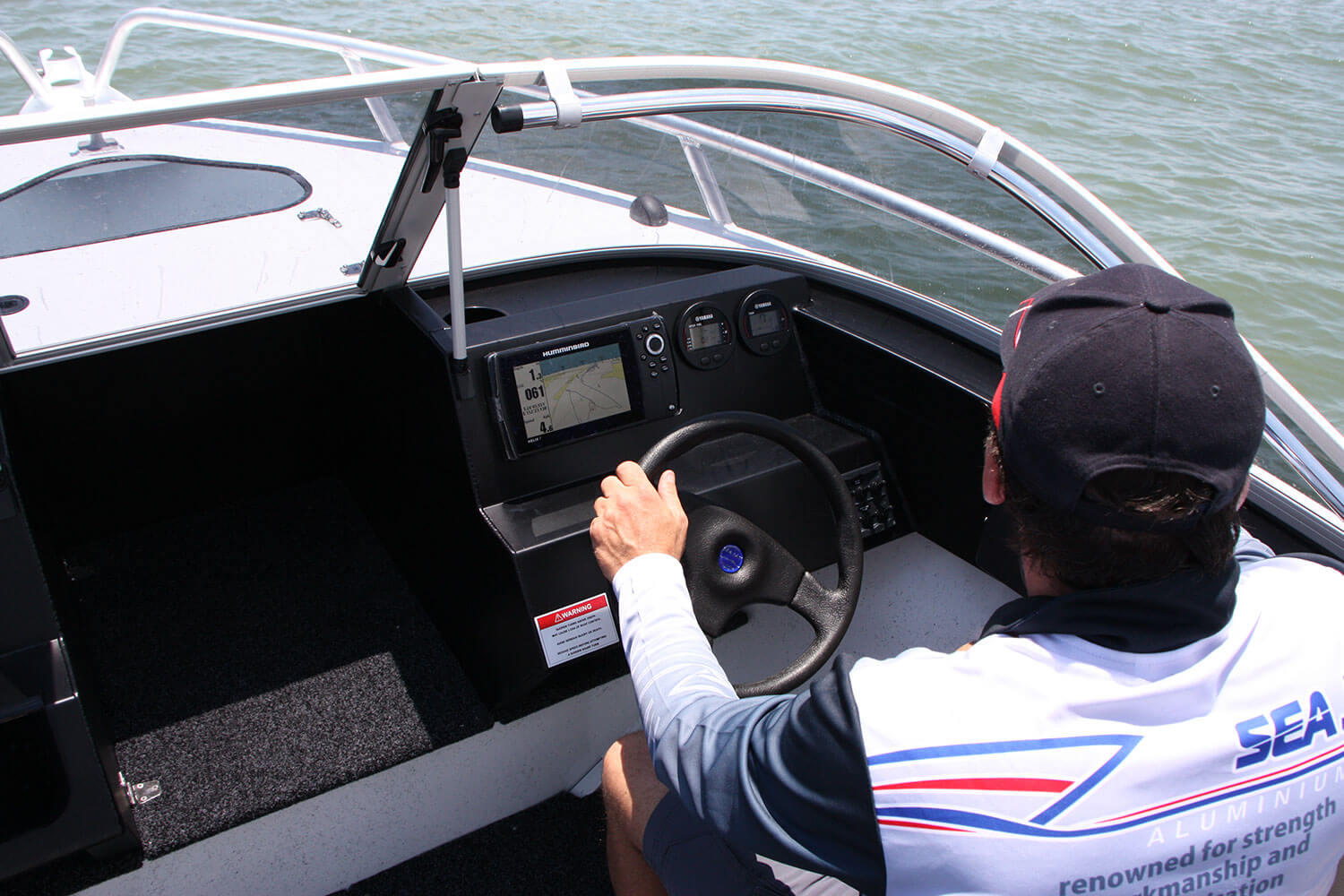

Dashboard & glovebox
bollard x 3 3 3
Bow sprit & roller
Bungs 38mm 1 1
Dive door opt
Drink holder 2 2
Storage under walk through
Flotation – under floor
Floor – carpet / plywood
Gunwhale rubber insert
Painted – chine up & inside
Pin stripes
Platinum sides (3mm plate)
5083 plate 4mm bottoms with capped keel & welded strakes
Rod holders (plastic) 4 4

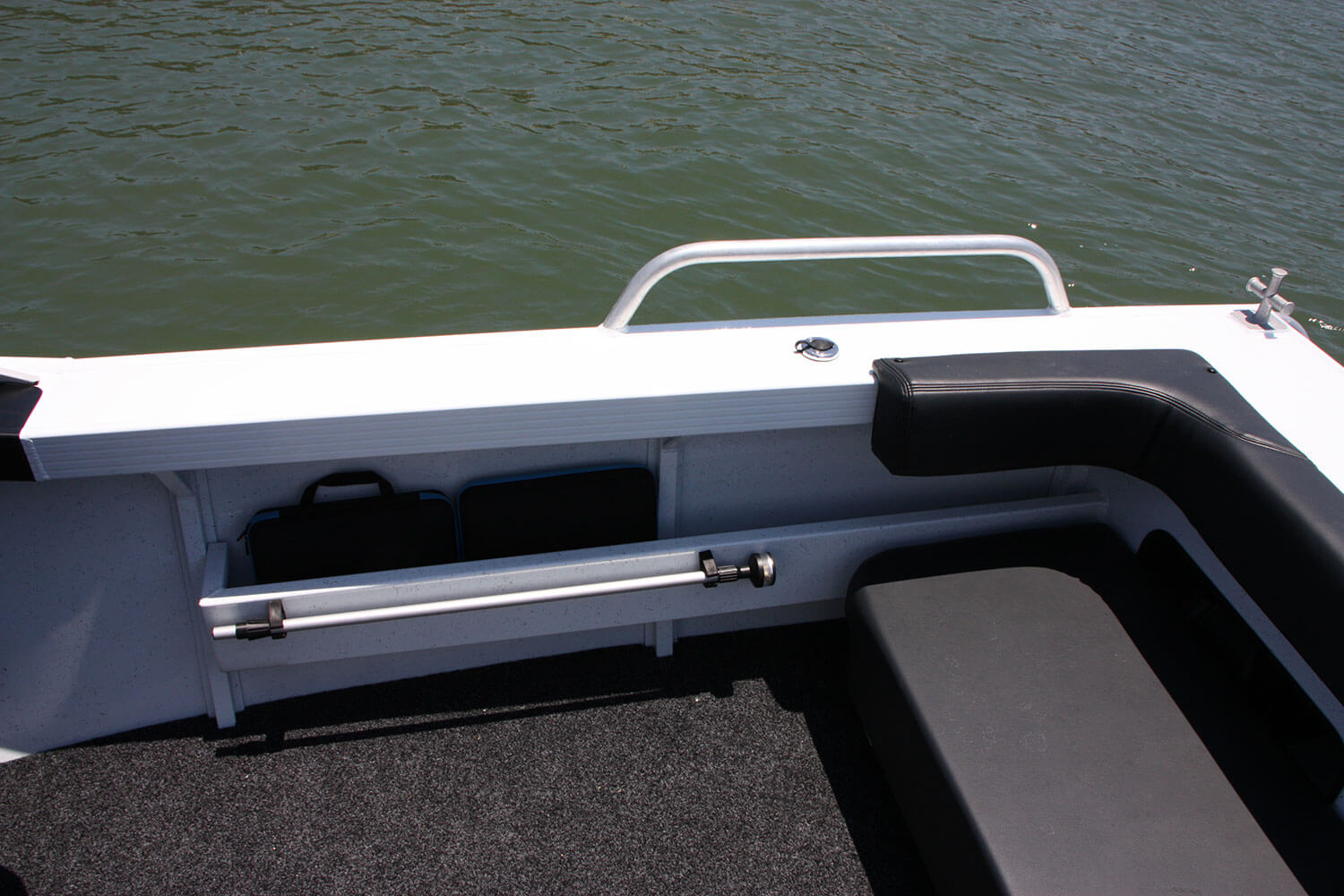

Side pockets
Spray chines
Steering – hydraulic opt
Steering – mechanical
Samurai hull
Towing eye (double)
Transducer bracket – Dual
Wide side decks – fully welded on top
Transom tied down eyes
TRANSOM
Ultimate Edge 2 – LS 20″
Ultimate Edge 2 – XL 25″
FUEL TANK
Under floor / gunwale filler / gauge 100ltr 150ltr
RAILS
Heavy duty 32mm low bow rails
Windscreen grab rail
Heavy duty 32mm rear transom rails
ELECTRICAL
Accessory pre rig loom with battery box & isolation switch
6 gang switch panel / bilge pump / navigation, stern & anchor light
Garmin GT56 Transducer
SEATS
Fully upholstered bucket swivel seats & pedestal
Removable rear lounge with fixed padded back rest

FACTORY OPTIONS  4.90  5.20
Paint upgrade to color (white or pipeline grey are standard) opt opt
Vinyl wrap opt opt
Bilge pump upgrade to auto opt opt
Hydralic steering upgrade opt std
Anchor well reinforced to suit winch included Sarca bow sprit opt opt
Upgrade plastic rod holders to alloy opt opt
Sea Jay Trailer. Earn extra 12 months Warranty at no extra charge opt opt
Spare wheel kit opt opt
Hatch cover over transom cutouts opt opt
Bait board removable opt opt
Boat board removable with ski pole opt opt
Bait board standard bolt on opt opt
Dive / transom door opt std
Garmin EcoMap / GPSMap opt opt
opt = Available Option
std = Included as Standard
Note
– Specifications may vary slightly. Features / options are subject to change without notification.
