520 Crusader

Back to listings


Sea Jay 520 Crusader


$0.00
* Sail Away
Click to zoom / enlarge this image

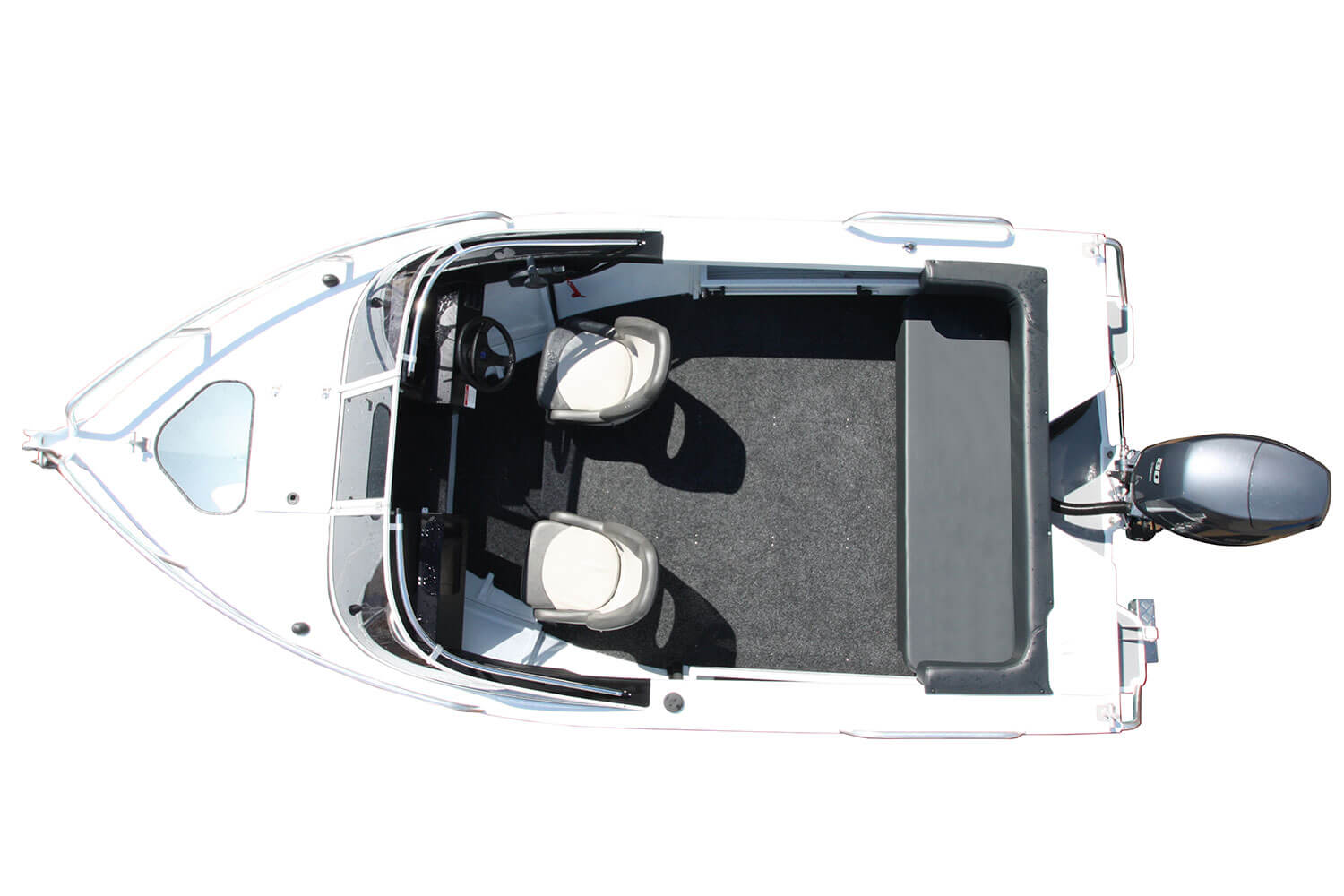

The Crusader runabout features latest swept bow configuration in a runabout giving a greater feeling of safety up the front of the boat and the soft ride of the Samurai Hull is a pleasure to feel. A walk through dash and screen allows for easy anchoring and fully upholstered swivel seats in the front and fully upholstered removable rear lounge with padded back rest gives the whole family a comfortable ride. The Crusader is a perfect mix of a roomy family boat with a good fishing platform.

Boat Details
  • Make: Sea Jay
  • Name: 520 Crusader
  • Model Number: 520 Crusader
  • Year: 2026
  • Length: 5.52 metres
  • Width: 2.4 metres
  • Dry Weight: 520 kg
  • Hull Material: Aluminium
  • Hull Type: Mono
  • Passenger Capacity: 5
  • Boat Usage: Fishing
  • Steering: Side Console
  • Warranty: Contact Dealer
Engine Details
  • Brand: Yamaha
  • Horsepower: 115
  • Fuel Capacity:
  • Drive Type:
  • Steering:

SPECIFICATIONS  4.90  5.20
Bottoms high tensile 5083 plate (mm) 4.0 4.0
Plate sides (mm) 3.0 3.0
Beam (m) 2.3 2.4
Depth (m) 1.25 1.29
Depth including screen (m) 1.58 tbc
Floor ribs 12 13
Length overall 5.22 5.52
Number of persons 5 5
Weight approx (kg) 520 tbc
Maximum hp 90 115
Maximum motor weight (kg) 175 195

Note – Specifications may vary slightly. Features / options are subject to change without notification.
FEATURES  4.90  5.20

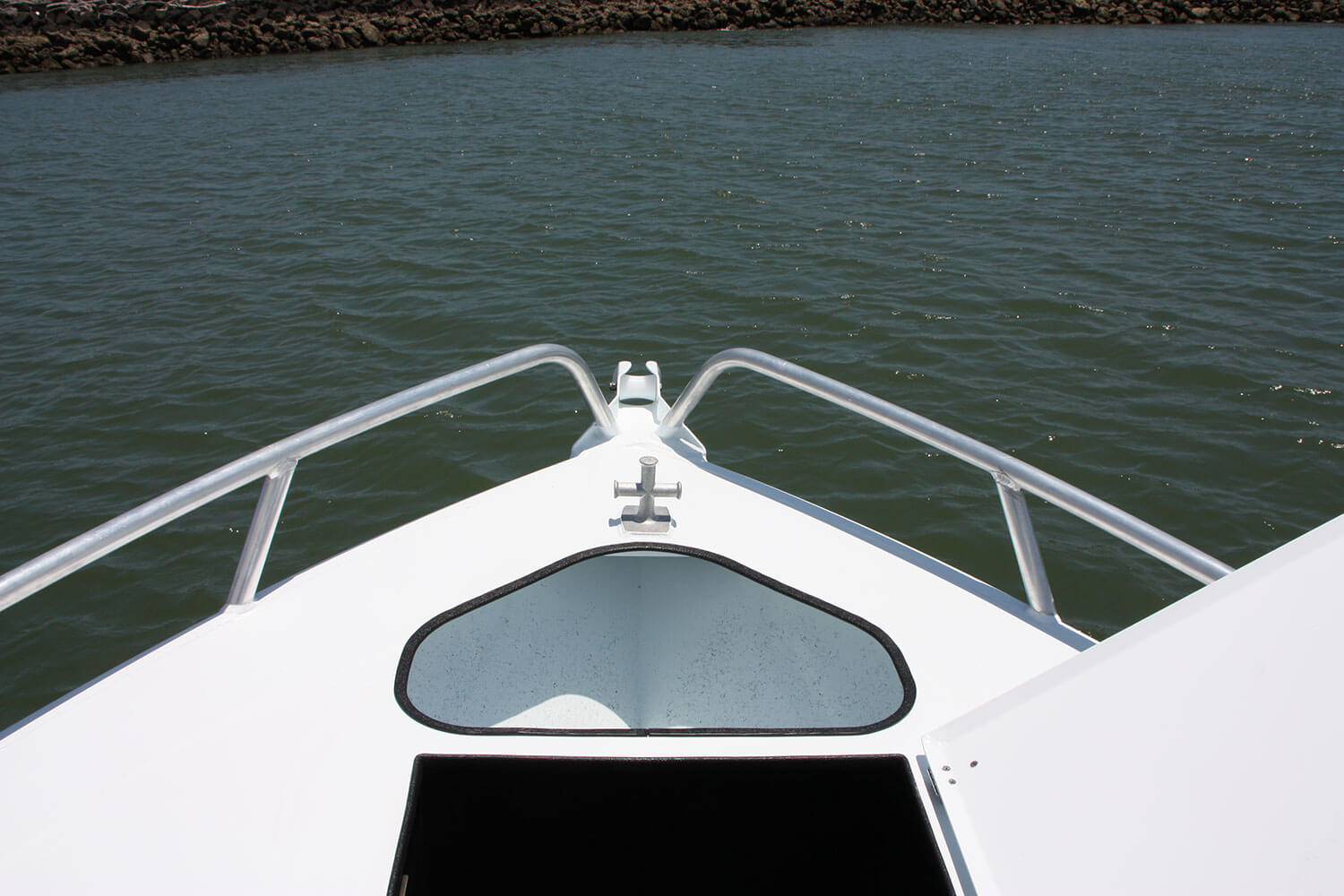

Anchor well ✓ ✓
Bait tank plumbed – alloy ✓ ✓
Battery & oil rack in stern ✓ ✓
Boarding ladder – heavy duty ✓ ✓
Windscreen with grab rails ✓ ✓

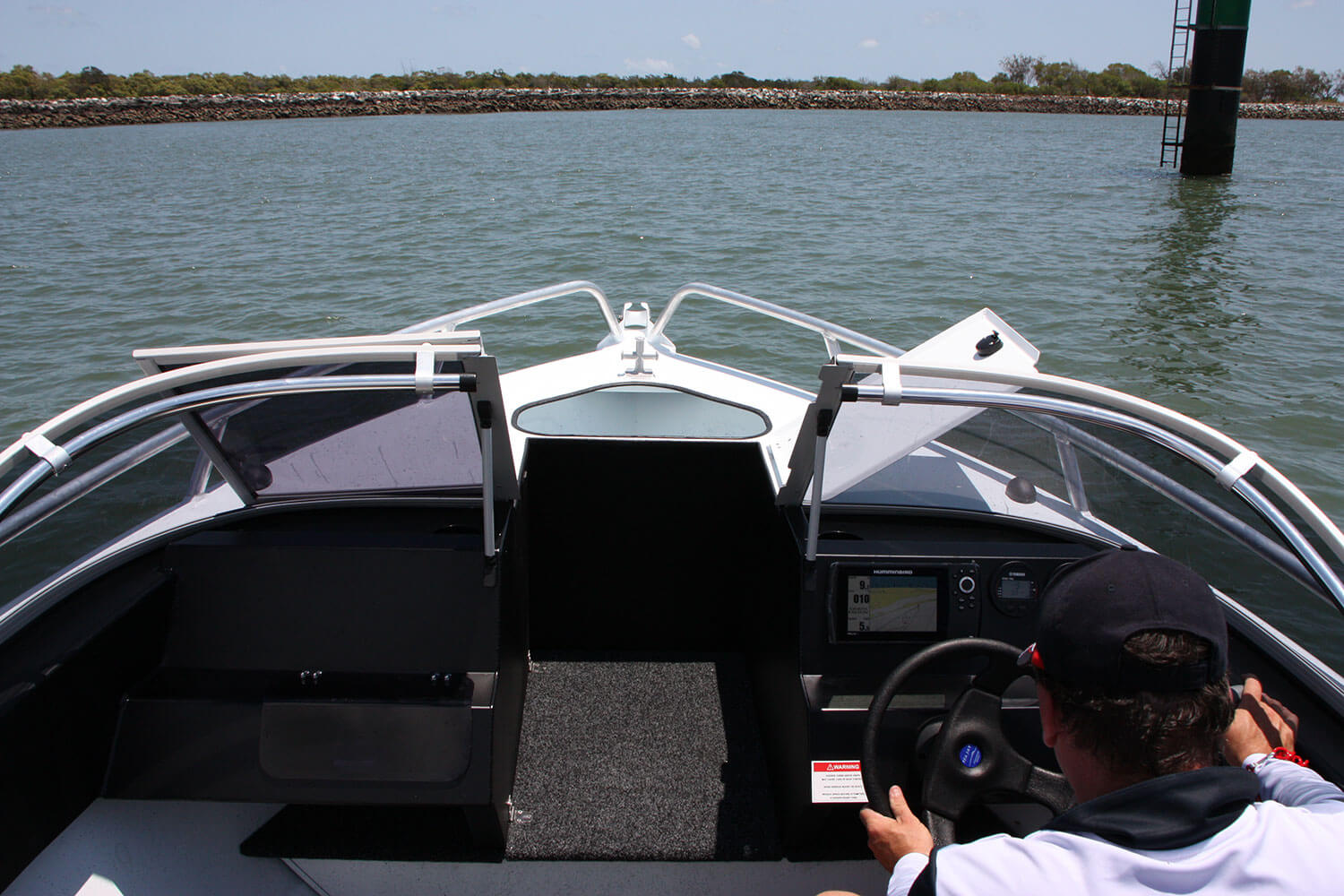

Walk through windscreen ✓ ✓

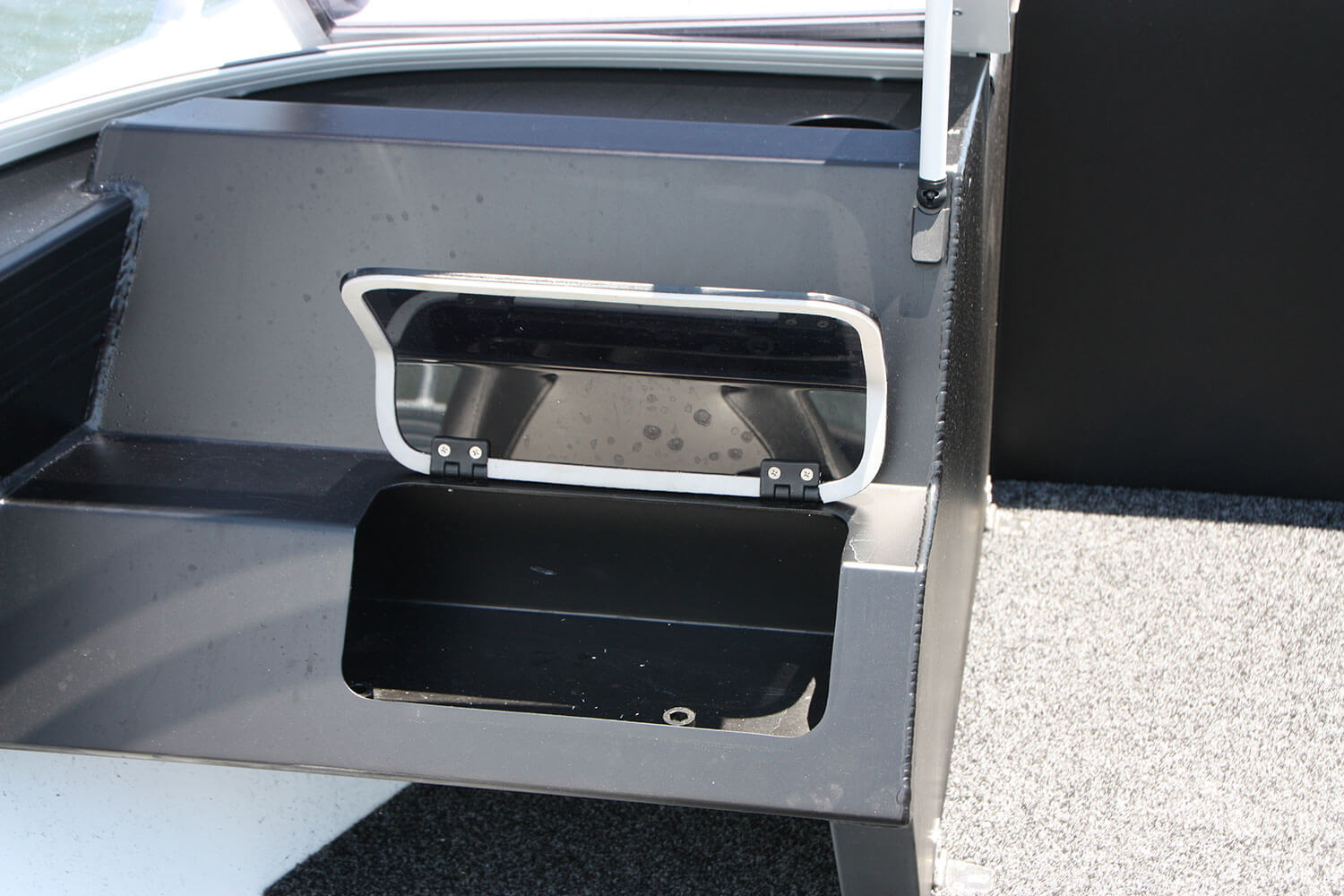

Dashboard & glovebox ✓ ✓
bollard x 3 3 3
Bow sprit & roller ✓ ✓
Bungs 38mm 1 1
Dive door opt ✓
Drink holder 2 2
Storage under walk through ✓ ✓
Flotation – under floor ✓ ✓
Floor – carpet / plywood ✓ ✓
Gunwhale rubber insert ✓ ✓
Painted – chine up & inside ✓ ✓
Pin stripes ✓ ✓
Platinum sides (3mm plate) ✓ ✓
5083 plate 4mm bottoms with capped keel & welded strakes ✓ ✓
Rod holders (plastic) 4 4
Side pockets ✓ ✓
Spray chines ✓ ✓
Steering – hydraulic opt ✓
Steering – mechanical ✓
Samurai hull ✓ ✓
Towing eye (double) ✓ ✓
Transducer bracket – Dual ✓ ✓
Wide side decks – fully welded on top ✓ ✓
Transom tied down eyes ✓ ✓
TRANSOM
Ultimate Edge 2 – LS 20″ ✓
Ultimate Edge 2 – XL 25″ ✓
FUEL TANK
Under floor / gunwale filler / gauge 100ltr 150ltr
RAILS
Heavy duty 32mm low bow rails ✓ ✓
Windscreen grab rail ✓ ✓
Heavy duty 32mm rear transom rails ✓ ✓
ELECTRICAL
Accessory pre rig loom with battery box & isolation switch ✓ ✓
6 gang switch panel / bilge pump / navigation, stern & anchor light ✓ ✓
Garmin GT56 Transducer  ✓ ✓
SEATS
Fully upholstered bucket swivel seats & pedestal ✓ ✓

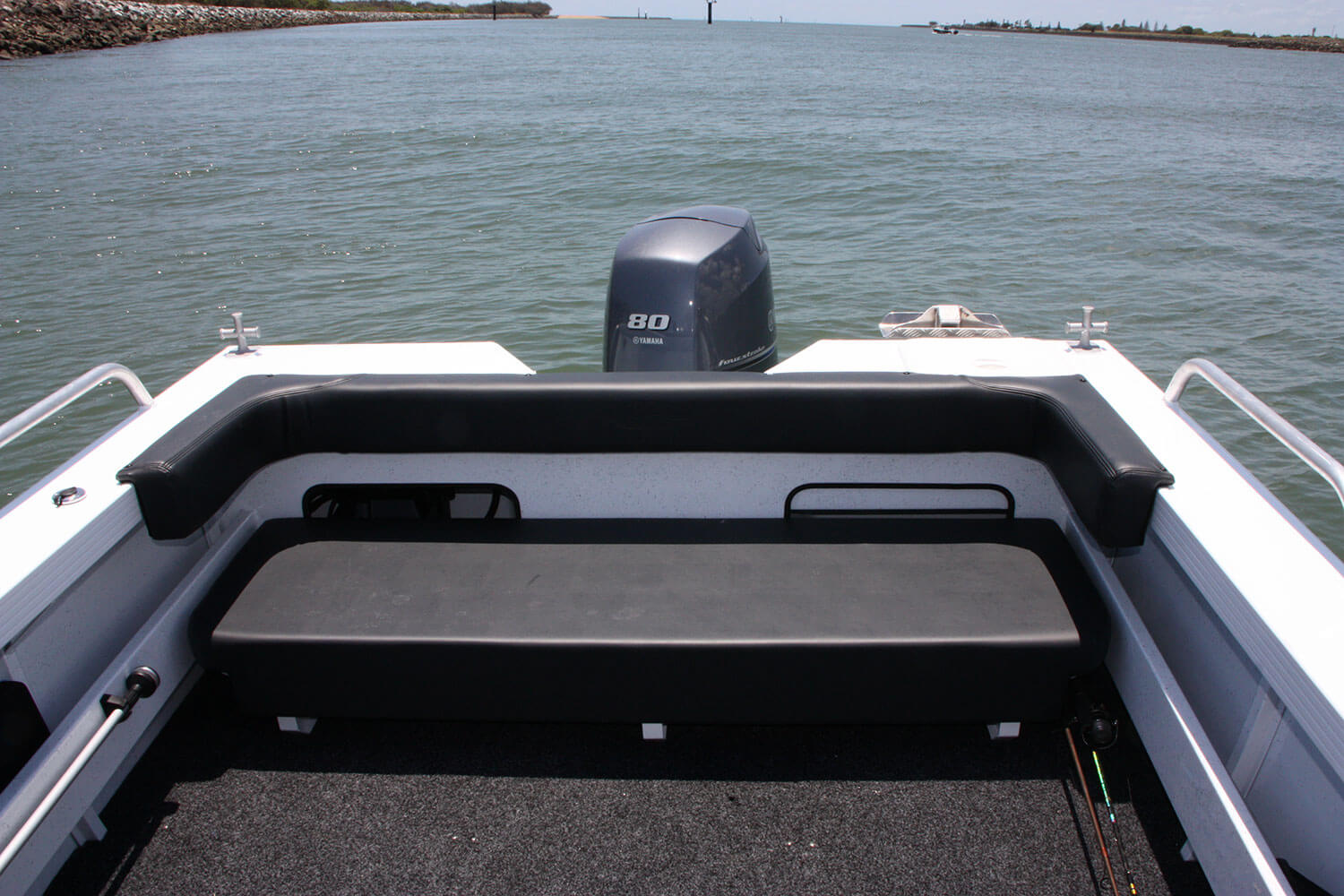

Removable rear lounge with fixed padded back rest ✓ ✓

FACTORY OPTIONS  4.90  5.20
Paint upgrade to color (white or pipeline grey are standard) opt opt
Vinyl wrap opt opt
Bilge pump upgrade to auto opt opt
Hydralic steering upgrade opt std
Anchor well reinforced to suit winch included Sarca bow sprit opt opt
Upgrade plastic rod holders to alloy opt opt
Sea Jay Trailer. Earn extra 12 months Warranty at no extra charge opt opt
Spare wheel kit opt opt
Hatch cover over transom cutouts opt opt
Bait board removable opt opt
Boat board removable with ski pole opt opt
Bait board standard bolt on opt opt
Dive / transom door opt std
Garmin EcoMap / GPSMap opt opt
opt = Available Option
std = Included as Standard
Note
– Specifications may vary slightly. Features / options are subject to change without notification.
